Reverse Engineering Obsolete Components: How Precision Machining Keeps Industrial Plants Running

Industrial plants are built to last decades. The equipment inside them is not always designed with the same longevity in mind — or at least, the supply of spare parts isn't. When a critical component fails and the original manufacturer no longer supports it, or the company no longer exists, the options narrow quickly.

Reverse engineering through precision machining is often the solution that keeps a plant running when no off-the-shelf alternative exists.

The Obsolescence Problem in Industrial Engineering

The lifespan of industrial plant significantly exceeds the commercial lifespan of the components within it. Manufacturers discontinue product lines. Companies merge, rebrand, or close. Supply chains shift. The result is that many plants are operating equipment for which genuine spare parts are no longer available — or available only at extreme cost and lead times from specialist suppliers who have stockpiled old stock.

This is particularly common with:

• Older turbines and rotating equipment
• Legacy valve and actuator components
• Bespoke machined parts from original equipment manufacturers no longer trading
• Custom fittings, flanges, and housings designed to non-standard specifications
• Wear parts for material handling equipment manufactured before standardisation

When one of these components fails, the choice is often between a lengthy and expensive OEM sourcing exercise, a full equipment replacement, or reverse engineering a new part.

What Is Reverse Engineering in a Machining Context?

Reverse engineering — in the context of precision machining — is the process of taking an existing component (or what remains of one), accurately measuring and characterising it, and then manufacturing a new part to match or improve on the original specification.

The process typically involves:

1. Dimensional capture
The existing component is measured in detail. For complex geometries, this may involve CMM (coordinate measuring machine) inspection, 3D scanning, or careful manual measurement using precision instruments. The goal is a complete dimensional picture of what the original part looked like when it was new — accounting for any wear or damage on the sample being measured.

2. Material identification
The original material must be identified to ensure the replacement performs equivalently. This may involve hardness testing, spark testing, or spectrographic analysis. Selecting the wrong material — or a close approximation that falls short on hardness, toughness, or corrosion resistance — risks premature failure of the new component.

3. Drawing generation
From the dimensional capture and material identification, a full engineering drawing is produced. This drawing becomes the manufacturing specification and is retained for future reference — meaning the second replacement is faster and cheaper than the first.

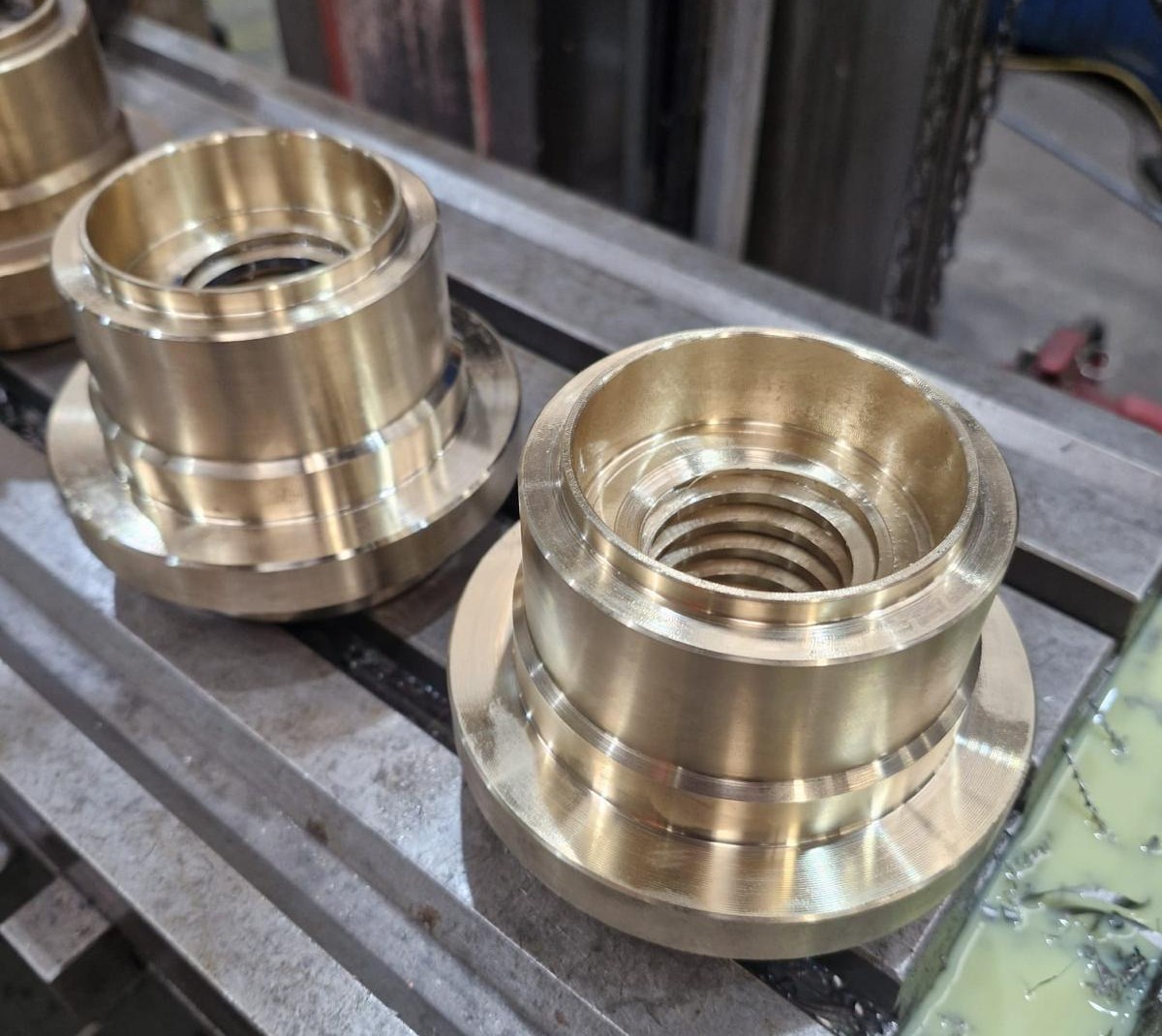

4. Precision machining
The component is manufactured using CNC turning, milling, grinding, or a combination of processes appropriate to the geometry and tolerances required. For components with tight tolerances — bearing journals, seal running surfaces, threaded features — machining accuracy is critical to achieving correct fit and function.

5. Inspection and validation
The finished part is inspected against the drawing before leaving the workshop. Where possible, a trial fit is recommended before the original failed component is discarded.

When Reverse Engineering Makes Sense

Reverse engineering is not always the right answer. It makes most sense when:

• No direct replacement is available from the original manufacturer or approved alternative suppliers
• The cost of a genuine OEM part — where one exists — is disproportionate to the value of the component
• Lead times on genuine parts would cause unacceptable plant downtime
• Multiple identical components exist on site, so a drawing produced for one will service the others
• The component is a regular wear part that will need to be replaced repeatedly

In some cases, the reverse-engineered replacement can be improved on the original — using upgraded materials, improved surface treatments, or modified geometry to address a known weakness in the original design.

The Documentation Benefit

One of the underappreciated advantages of reverse engineering a component through a precision machining supplier is the documentation that results from the process. Before the exercise, you had a failed part and no drawing. After it, you have:

• A complete engineering drawing of the component
• Material specification
• Machining history
• Inspection records

This documentation has value well beyond the immediate repair. It becomes part of your plant's engineering records, enabling faster and cheaper replacement next time and providing information useful for planned maintenance scheduling.

What to Look for in a Reverse Engineering and Machining Supplier

Not all machine shops have the capability or experience for industrial reverse engineering. Key criteria to consider:

• CMM or precision measurement capability – accurate dimensional capture is the foundation of a successful reverse engineering project
• Range of machining processes – complex components often require turning, milling, and grinding; a supplier with all three under one roof avoids additional handling and tolerance stack-up
• Material knowledge – the ability to correctly identify and specify materials for industrial duty
• Industrial experience – familiarity with how components function in service informs better judgement at every stage of the process
• Quality documentation – inspection records and drawing retention for future reference

Summary

Obsolete components are an operational reality in long-lived industrial plants. When a critical part fails and the supply chain can't help, precision machining and reverse engineering provide a viable route to getting plant back online — often faster and more cost-effectively than the alternatives.

The process also leaves you better equipped for the future: with drawings, material specifications, and a machining supplier who already understands your component. The first reverse engineering exercise is the most expensive. Every subsequent one is cheaper and faster.
